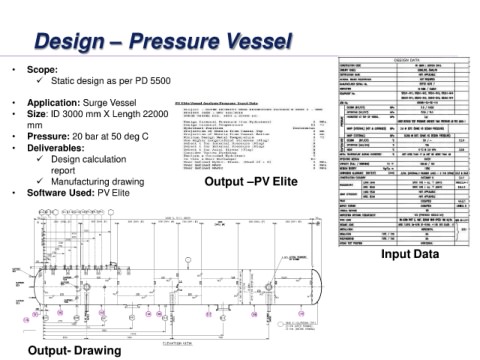

Design – Pressure Vessel

• Scope:
 Static design as per PD 5500

• Application: Surge Vessel
• Size: ID 3000 mm X Length 22000
mm

• Pressure: 20 bar at 50 deg C
• Deliverables:
 Design calculation
report
 Manufacturing drawing Output –PV Elite
• Software Used: PV Elite

N1A N2 N3 N4 N5 N6A N7 N8 N12 N13 M1

Input Data

W2
W2 W2 W2 W2
W2 W2
W1 W2
W2 W2
W2 W1
W2 W2 W2 W2
N1B N6B NP N9 N10 N11

ELEVATION VIEW
Output- Drawing
